M-Series
EPSOLUTION

EPSILON’s tractor crane models stand out by short parking length, low net weight and compact height. There are plenty of possibilities for individual specification due to the modular construction system.

The M-Series is the medium-duty class of EPSILON cranes in the forwarder model range and covers lifting capacities of 7 to 9 tonne metres.

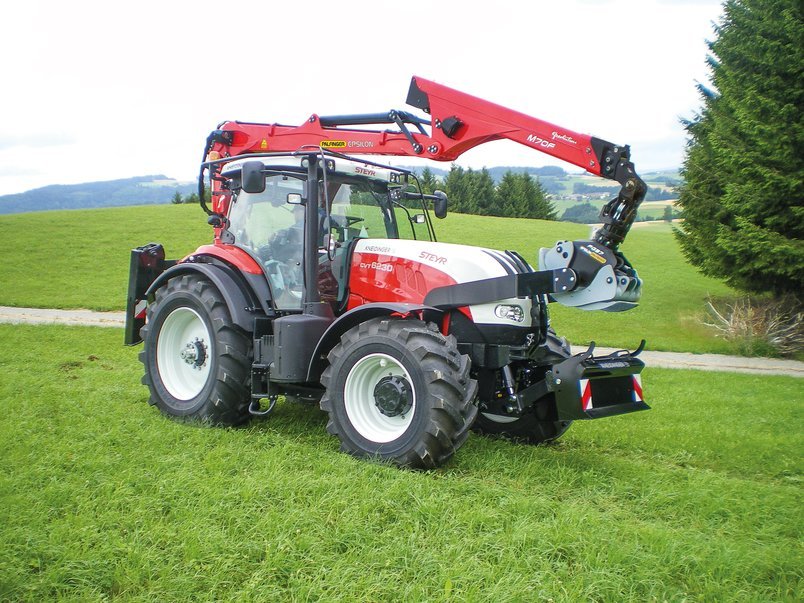

EPSILON-M70F | © PALFINGER-EPSILON

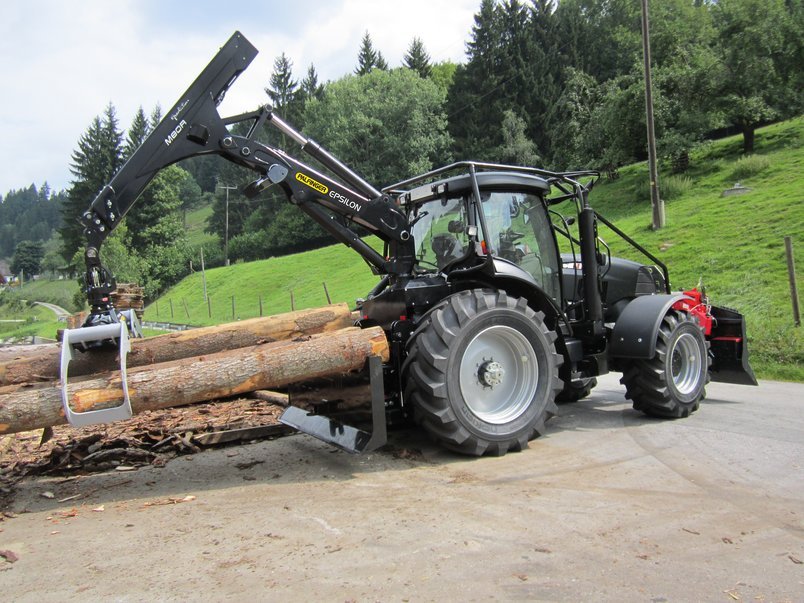

EPSILON-M80R | © PALFINGER-EPSILON

Control methods

Available areas for
  • Steuerung-Grundfahrzeug | © PALFINGER-EPSILON

    External Control

    Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.
    External Control

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • Steuerung-Grundfahrzeug | © PALFINGER-EPSILON

    External Control

    Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.
    External Control

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Technical details

M70F M80F
Telescopic boom length [dm] 80 81 86 101 80 81 86 101
Number of extensions 1 2 2 2 1 2 2 2
Net load moment [kNm] 68 71 68 65 78 82 78 75
Net slewing torque [kNm] 26 26 26 26 29 29 29 29
Slewing angle [°] 385 385 385 385 385 385 385 385
Max. reach [m] 8 8,1 8,6 10,1 8 8,1 8,6 10,1
Operating pressure [bar] 215 215 215 215 240 240 240 240
Max. pump capacity. 1K [l/min] - - - - - - - -
Max. pump capacity. 2K [l/min] - - - - - - - -
Max. pump capacity. 2K-LS [l/min] 130 130 130 130 130 130 130 130

Dead weight without joint/rotator

M70F M80F
Telescopic boom length [dm] 80 81 86 101 80 81 86 101
Incl. standard top seat 1590 1590 1650 1730 1590 1590 1650 1730
M70R M80R M90R
Telescopic boom length [dm] 68 68 72 80 68 72 80
Number of extensions 2 2 2 2 2 2 2
Net load moment [kNm] 69 73 73 68 82 82 76
Net slewing torque [kNm] 25 26 26 26 29 29 29
Slewing angle [°] 385 385 385 385 385 385 385
Max. reach [m] 6,8 6,8 7,2 8 6,8 7,2 8
Operating pressure [bar] 190 200 200 200 220 220 220
Max. pump capacity. 1K [l/min] - - - - - - -
Max. pump capacity. 2K [l/min] - - - - - - -
Max. pump capacity. 2K-LS [l/min] 130 130 130 130 130 130 130

Dead weight without joint/rotator

M70R M80R M90R
Telescopic boom length [dm] 68 68 72 80 68 72 80
Incl. standard top seat 1430 1430 1430 1470 1430 1430 1470
