M-SERIES
EPSOLUTION

EPSILON and SOLUTION together make EPSOLUTION

The market leader in forestry and recycling cranes considers it its duty to take requests and feedback from customers and implement them in its designs, thereby creating well-founded solutions that provide customers with products tailor-made for their applications.

The M-Series is the medium-duty class of EPSILON cranes in this model range and covers lifting capacities of 10 to 13 tonne metres.

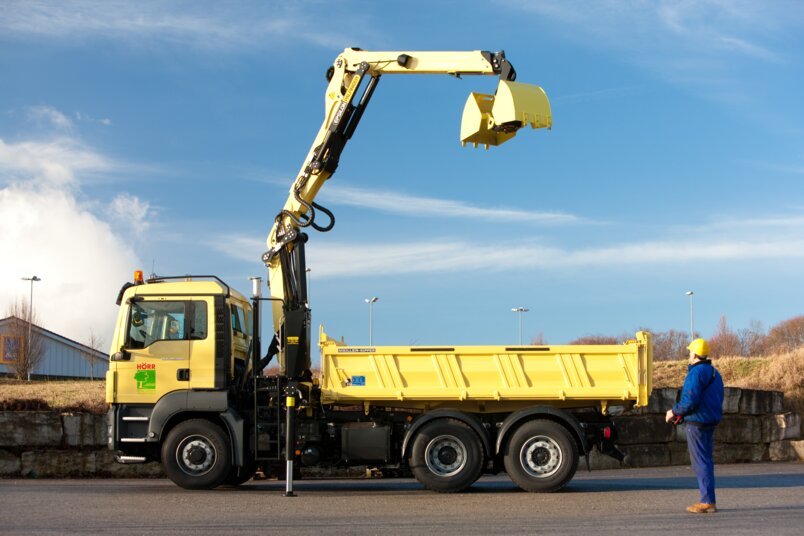

EPSILON-MZ-TR | © PALFINGER-EPSILON

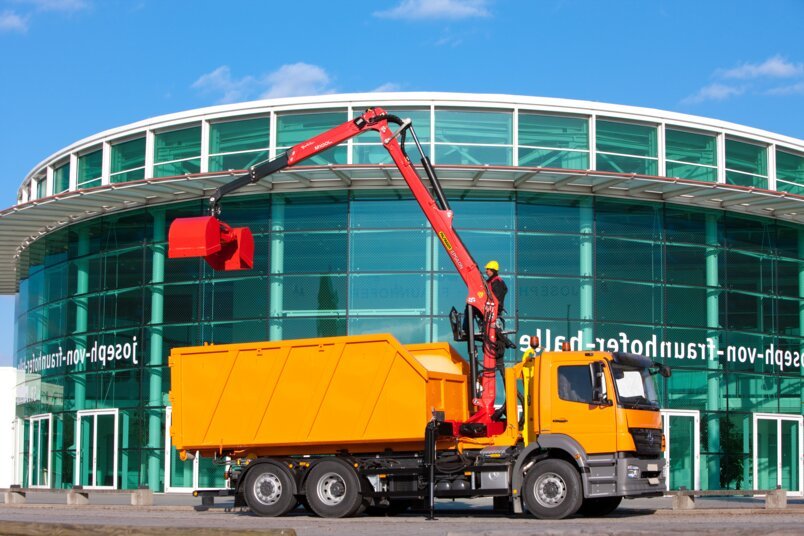

EPSILON-M100L | © PALFINGER-EPSILON
EPSILON-MZ-TR | © PALFINGER-EPSILON

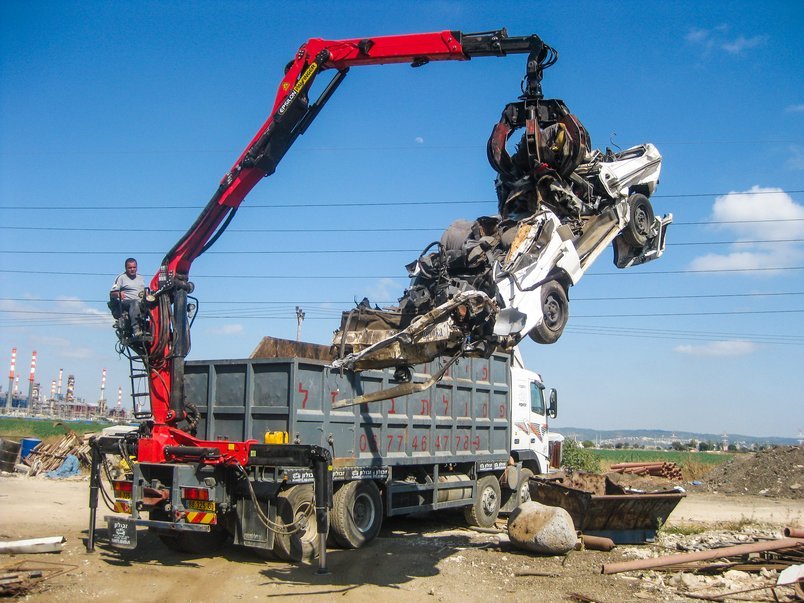

EPSILON-MLTR | © PALFINGER-EPSILON

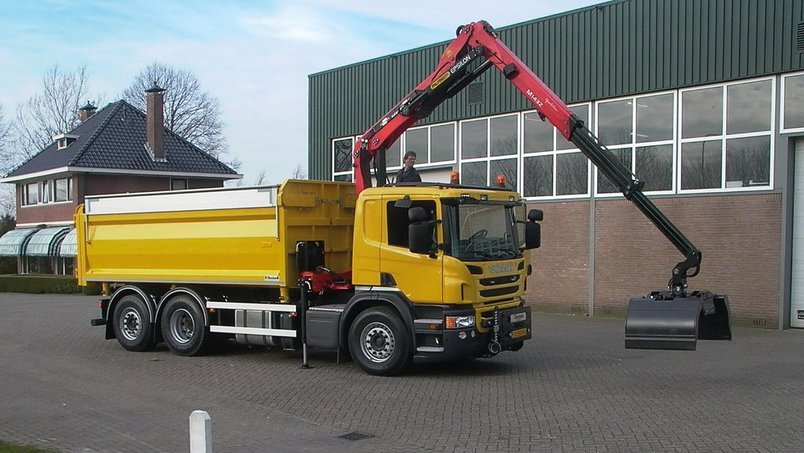

EPSILON-M140Z | © PALFINGER-EPSILON

CONTROL METHODS

Available areas for

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution
  • PALFINGER-EPSILON-SCRCD | © PALFINGER-EPSILON

    Standing platform (SCMD/SCRCD)

    Perfect visibility over the tipper truck; also available in combination with remote control.
    Standing platform | Epsolution
  • PALFINGER-EPSILON-Scanreco_6L | © PALFINGER-EPSILON

    Remote control (RCE)

    Simple, high-precision controls with a clear view of the cargo.
    Remote control | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution
  • PALFINGER-EPSILON-SCRCD | © PALFINGER-EPSILON

    Standing platform (SCMD/SCRCD)

    Perfect visibility over the tipper truck; also available in combination with remote control.
    Standing platform | Epsolution
  • PALFINGER-EPSILON-Scanreco_6L | © PALFINGER-EPSILON

    Remote control (RCE)

    Simple, high-precision controls with a clear view of the cargo.
    Remote control | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Technical details

M100Z M110Z M120Z
Telescopic boom length [dm] 77 79 82 96 77 79 82 96 77 79 82 96
Number of extensions 2 1 2 2 2 1 2 2 2 1 2 2
Net load moment [kNm] 94 93 92 90 101 99 99 97 108 109 107 105
Net slewing torque [kNm] 24 24 24 24 27 27 27 27 28 28 28 28
Slewing angle [°] 425 425 425 425 425 425 425 425 425 425 425 425
Max. reach [m] 7,7 7,9 8,2 9,6 7,7 7,9 8,2 9,6 7,7 7,9 8,2 9,6
Operating pressure [bar] 230 230 230 230 245 245 245 245 260 260 260 260
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100Z M110Z M120Z
Telescopic boom length [dm] 77 79 82 96 77 79 82 96 77 79 82 96
M100L M110L M120L M130L
Telescopic boom length [dm] 75 80 83 97 75 80 83 97 75 80 83 97 75 80 83 97
Number of extensions 2 1 2 2 2 1 2 2 2 1 2 2 2 1 2 2
Net load moment [kNm] 100 97 95 92 111 108 106 103 119 116 114 112 132 129 127 124
Net slewing torque [kNm] 24 24 24 24 27 27 27 27 28 28 28 28 28 28 28 28
Slewing angle [°] 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425
Max. reach [m] 7,5 8 8,3 9,7 7,5 8 8,3 9,7 7,5 8 8,3 9,7 7,5 8 8,3 9,7
Operating pressure [bar] 215 215 215 215 235 235 235 235 250 250 250 250 280 280 280 280
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100L M110L M120L M130L
Telescopic boom length [dm] 75 80 83 97 75 80 83 97 75 80 83 97 75 80 83 97
Incl. standing platform (SCMD/SCRCD) 1990 1990 2040 2110 2020 2020 2070 2140 2060 2060 2110 2180 2070 2070 2120 2190
Incl. standard top seat 1990 1990 2040 2110 2020 2020 2070 2140 2060 2060 2110 2180 2070 2070 2120 2190
Incl. electric cabin (CAE) 2330 2330 2380 2450 2360 2360 2410 2480 - - - - - - - -
Incl. mechanical cabin (CAM) 2340 2340 2390 2460 2370 2370 2420 2490 - - - - - - - -
Incl. remote control (RCE) 1990 1990 2040 2110 2020 2020 2070 2140 2060 2060 2110 2180 2070 2070 2120 2190
M100Z M110Z M120Z
Telescopic boom length [dm] 79TR 95TR 79TR 95TR 79TR 95TR
Number of extensions 1 2 1 2 1 2
Net load moment [kNm] 91 88 98 94 104 101
Net slewing torque [kNm] 24 24 27 27 28 28
Slewing angle [°] 425 425 425 425 425 425
Max. reach [m] 7,9 9,5 7,9 9,5 7,9 9,5
Operating pressure [bar] 260 260 275 275 290 290
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100Z M110Z M120Z
Telescopic boom length [dm] 79TR 95TR 79TR 95TR 79TR 95TR
Incl. standing platform (SCMD/SCRCD) 2360 2460 2390 2490 2430 2530
Incl. standard top seat 2360 2460 2390 2490 2430 2530
Incl. remote control (RCE) 2360 2460 2390 2490 2430 2530
M100L M110L M120L
Telescopic boom length [dm] 81TR 95TR 81TR 95TR 81TR 95TR
Number of extensions 2 2 2 2 2 2
Net load moment [kNm] 92 90 103 100 111 109
Net slewing torque [kNm] 24 24 27 27 28 28
Slewing angle [°] 425 425 425 425 425 425
Max. reach [m] 8,1 9,5 8,1 9,5 8,1 9,5
Operating pressure [bar] 215 215 235 235 250 250
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100L M110L M120L
Telescopic boom length [dm] 81TR 95TR 81TR 95TR 81TR 95TR
Incl. standing platform (SCMD/SCRCD) 2330 2400 2360 2430 2400 2470
Incl. standard top seat 2330 2400 2360 2430 2400 2470
Incl. remote control (RCE) 2330 2400 2360 2430 2400 2470
M100Z M110Z M120Z
Telescopic boom length [dm] 84TI 84TI 84TI
Number of extensions 2 2 2
Net load moment [kNm] 93 93 107
Net slewing torque [kNm] 24 27 28
Slewing angle [°] 425 425 425
Max. reach [m] 8,4 8,4 8,4
Operating pressure [bar] 230 245 260
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130

Dead weight without joint/rotator

M100Z M110Z M120Z
Telescopic boom length [dm] 84TI 84TI 84TI
Incl. standing platform (SCMD/SCRCD) 2210 2240 2280
Incl. standard top seat 2210 2240 2280
Incl. remote control (RCE) 2210 2240 2280
