Forwardercrane

C-Series
EPSOLUTION

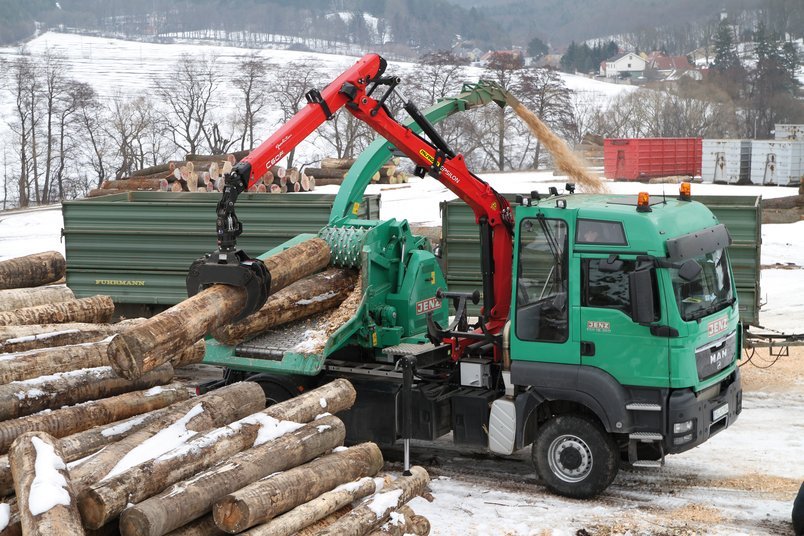

EPSILON cranes mounted on chippers increase the productivity of the chipper, as all hoses are mounted inside and protected. The grab is also protected with the solutions EPSCOPE and EPSLINK. This way the operator can concentrate completely on chipping.

In this application area EPSILON cooperates exclusively with professional OEMs, which integrate the crane control with the control of the chipper. EPSILON stands out in this sector with the largest product and equipment range of the truck and forwarder field.

The C-Series is the compact class of EPSILON cranes in the chipper model range and covers lifting capacities of 4,5 to 6 tonne metres.

Control methods

Available areas for

External Control

Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.

External Control
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

Forwardercrane

	C45F		C50F	C60F
Telescopic boom length [dm]	67	84	86	86
Number of extensions	1	2	2	2
Net load moment [kNm]	53	51	54	61
Net slewing torque [kNm]	14	14	18	20
Slewing angle [°]	340	340	425	425
Max. reach [m]	6,7	8,4	8,6	8,6
Operating pressure [bar]	170	170	180	200
Max. pump capacity. 1K [l/min]	-	-	-	-
Max. pump capacity. 2K [l/min]	-	-	-	-
Max. pump capacity. 2K-LS [l/min]	100	100	120	120
