L-Crane

Q-SERIES
EPSOLUTION

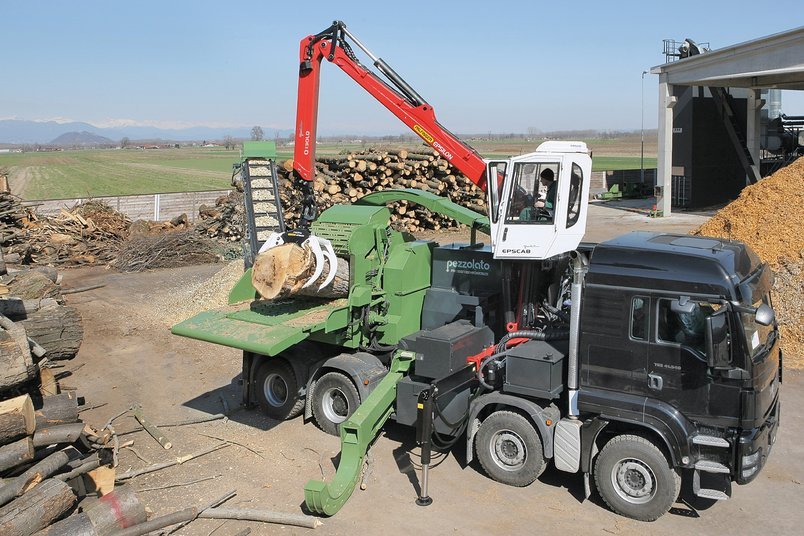

EPSILON cranes mounted on chippers increase the productivity of the chipper, as all hoses are mounted inside and protected. The grab is also protected with the solutions EPSCOPE and EPSLINK. This way the operator can concentrate completely on chipping.

In this application area EPSILON cooperates exclusively with professional OEMs, which integrate the crane control with the control of the chipper. EPSILON stands out in this sector with the largest product and equipment range of the truck and forwarder field.

The Q-Series is the upper end of the medium-duty class of EPSILON cranes in the chipper model range and covers lifting capacities of 13 tonne metres.

CONTROL METHODS

Available areas for

External Control

Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.

External Control
EPSCAB cabin (CAH/CAE)

Top performance in any weather. Excellent visibility thanks to hydraulically height-adjustable crane operator cabin.

EPSCAB | Epsolution
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

L-Crane

	Q130LD
Telescopic boom length [dm]	97	104
Number of extensions	2	2
Net load moment [kNm]	116	111
Net slewing torque [kNm]	30	30
Slewing angle [°]	425	425
Max. reach [m]	9,7	10,4
Operating pressure [bar]	210	210
Max. pump capacity. 1K [l/min]	90	90
Max. pump capacity. 2K [l/min]	80	80
Max. pump capacity. 2K-LS [l/min]	150	150
