Q-SERIES
EPSOLUTION

EPSILON and SOLUTION together make EPSOLUTION

The market leader in forestry and recycling cranes considers it its duty to take requests and feedback from customers and implement them in its designs, thereby creating well-founded solutions that provide customers with products tailor-made for their applications.

The Q-Series is the upper end of the medium-duty class of EPSILON cranes in this model range and covers lifting capacities of 15 to 18 tonne metres.

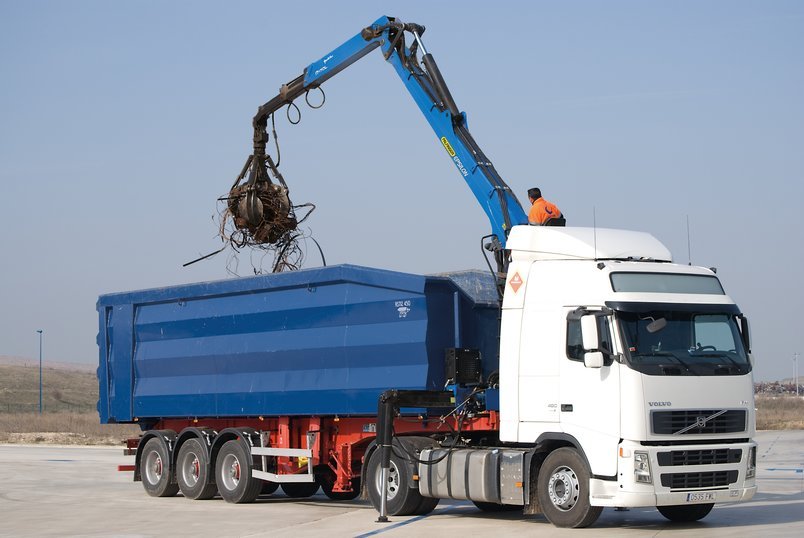

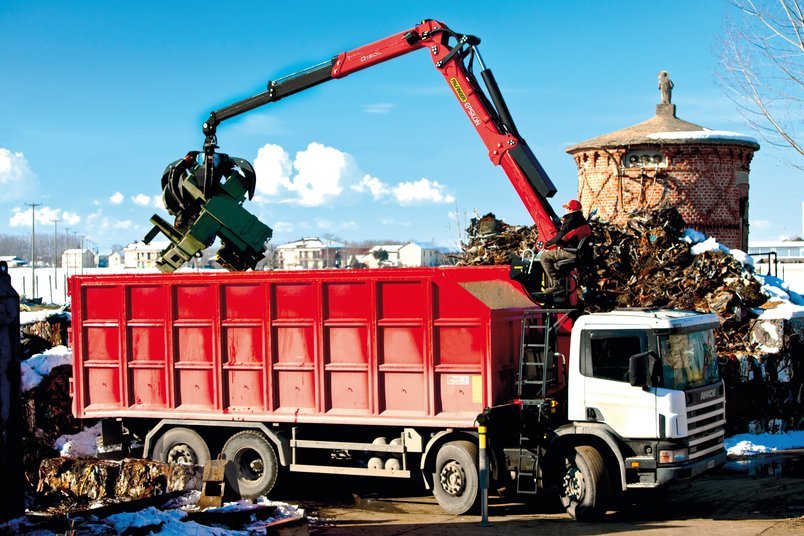

EPSILON-Q150LTR | © PALFINGER-EPSILON

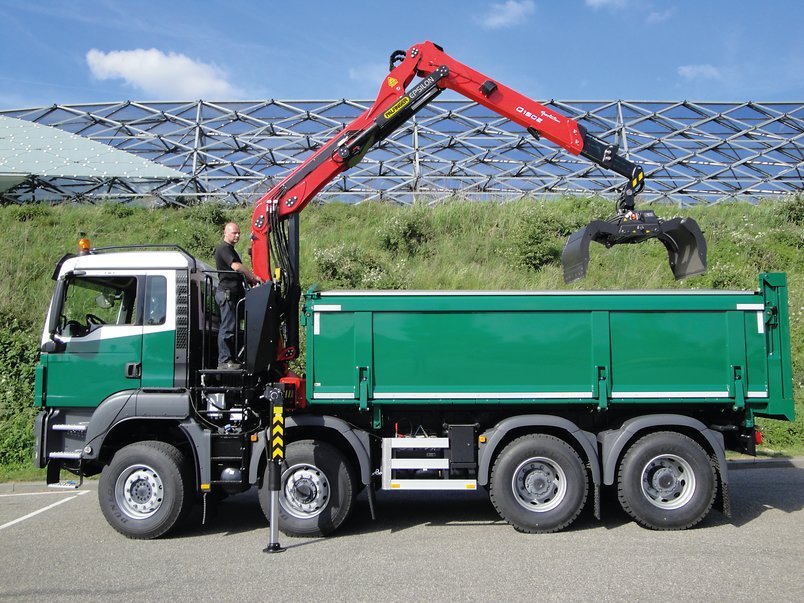

EPSILON-Q150Z84TI | © PALFINGER-EPSILON

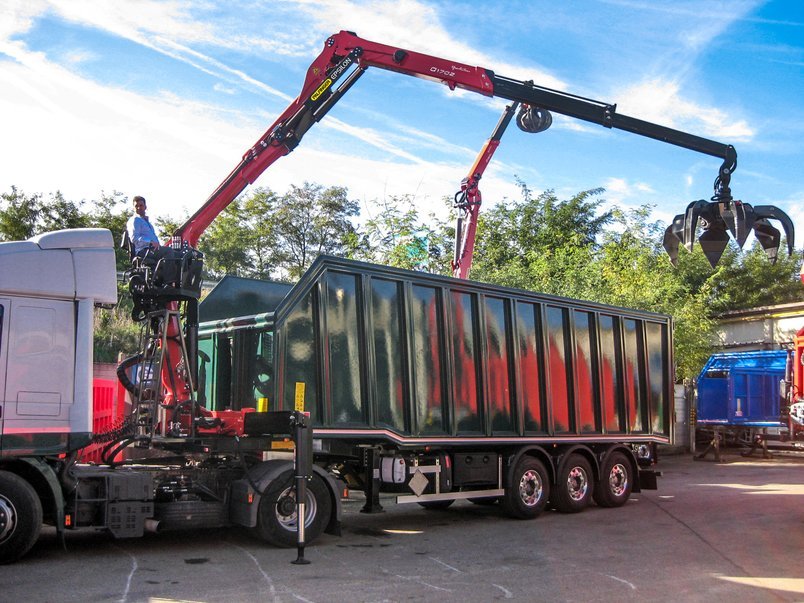

EPSILON-Q170ZTR | © PALFINGER-EPSILON
EPSILON-Q180Z | © PALFINGER-EPSILON
EPSILON-Q170L | © PALFINGER-EPSILON

CONTROL METHODS

Available areas for

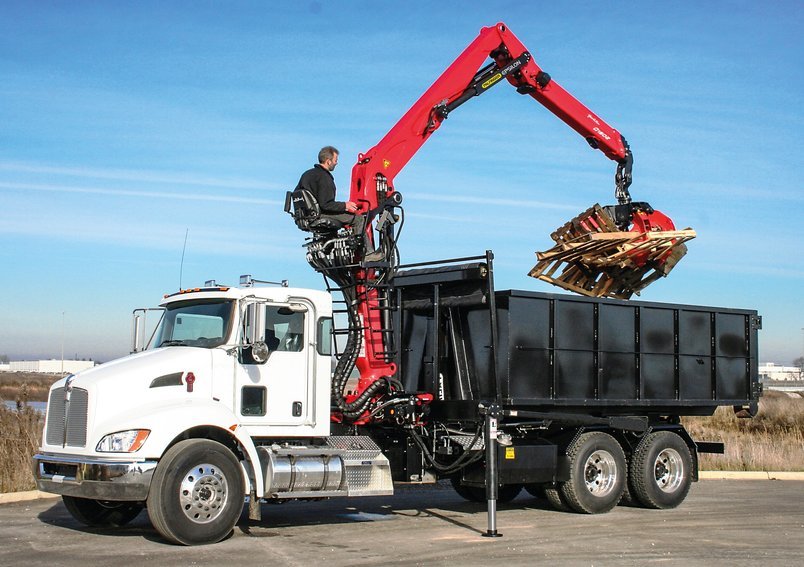

  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Technical details

Q150L Q170L
Telescopic boom length [dm] 82TR 95TR 82TR 95TR
Number of extensions 2 2 2 2
Net load moment [kNm] 134 131 148 145
Net slewing torque [kNm] 30 30 32 32
Slewing angle [°] 425 425 425 425
Max. reach [m] 8,2 9,5 8,2 9,5
Operating pressure [bar] 240 240 260 260
Max. pump capacity. 1K [l/min] 1x90 1x90 1x90 1x90
Max. pump capacity. 2K [l/min] 2x80 2x80 2x80 2x80
Max. pump capacity. 2K-LS [l/min] 1x150 1x150 1x150 1x150

Dead weight without joint/rotator

Q150L Q170L
Telescopic boom length [dm] 82TR 95TR 82TR 95TR
Incl. standing platform (SCMD/SCRCD) 2780 2880 2820 2920
Incl. standard top seat 2780 2880 2820 2920
Incl. remote control (RCE) 2780 2880 2820 2920
Q150Z Q170Z
Telescopic boom length [dm] 84TI 84TI
Number of extensions 2 2
Net load moment [kNm] 141 160
Net slewing torque [kNm] 30 32
Slewing angle [°] 425 425
Max. reach [m] 8,4 8,4
Operating pressure [bar] 240 260
Max. pump capacity. 1K [l/min] 1x90 1x90
Max. pump capacity. 2K [l/min] 2x80 2x80
Max. pump capacity. 2K-LS [l/min] 1x150 1x150

Dead weight without joint/rotator

Q150Z Q170Z
Telescopic boom length [dm] 84TI 84TI
Incl. standing platform (SCMD/SCRCD) 2560 2600
Incl. standard top seat 2560 2600
Incl. remote control (RCE) 2560 2600
Q150Z Q170Z Q180Z
Telescopic boom length [dm] 79TR 95TR 79TR 95TR 79TR 95TR
Number of extensions 1 2 1 2 1 2
Net load moment [kNm] 143 138 156 150 175 170
Net slewing torque [kNm] 30 30 32 32 32 32
Slewing angle [°] 425 425 425 425 425 425
Max. reach [m] 7,9 9,5 7,9 9,5 7,9 9,5
Operating pressure [bar] 270 270 290 290 320 320
Max. pump capacity. 1K [l/min] 1x90 1x90 1x90 1x90 1x90 1x90
Max. pump capacity. 2K [l/min] 2x80 2x80 2x80 2x80 2x80 2x80
Max. pump capacity. 2K-LS [l/min] 1x150 1x150 1x150 1x150 1x150 1x150

Dead weight without joint/rotator

Q150Z Q170Z Q180Z
Telescopic boom length [dm] 79TR 95TR 79TR 95TR 79TR 95TR
Incl. standing platform (SCMD/SCRCD) 2820 2920 2860 2960 2870 2970
Incl. standard top seat 2820 2920 2860 2960 2870 2970
Incl. remote control (RCE) 2820 2920 2860 2960 2870 2970
Q130ZD Q150Z Q170Z Q180Z
Telescopic boom length [dm] 96 79 82 96 79 82 96 79 82 96
Number of extensions 2 1 2 2 1 2 2 1 2 2
Net load moment [kNm] 120 145 142 140 163 160 158 185 181 180
Net slewing torque [kNm] 30 30 30 30 32 32 32 32 32 32
Slewing angle [°] 425 425 425 425 425 425 425 425 425 425
Max. reach [m] 9,6 7,9 8,2 9,6 7,9 8,2 9,6 7,9 8,2 9,6
Operating pressure [bar] 210 235 235 235 260 260 260 290 290 290
Max. pump capacity. 1K [l/min] 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90
Max. pump capacity. 2K [l/min] 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80
Max. pump capacity. 2K-LS [l/min] 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150

Dead weight without joint/rotator

Q130ZD Q150Z Q170Z Q180Z
Telescopic boom length [dm] 96 79 82 96 79 82 96 79 82 96
Incl. standing platform (SCMD/SCRCD) 2720 2550 2600 2680 2590 2640 2720 2600 2650 2730
Incl. standard top seat 2720 2550 2600 2680 2590 2640 2720 2600 2650 2730
Incl. electric cabin (CAE) - 2890 2940 3020 - - - - - -
Incl. mechanical cabin (CAM) - 2900 2950 3030 - - - - - -
Incl. XL electric cabin (CAEXL) 3130 - - - - - - - - -
Incl. remote control (RCE) 2720 2550 2600 2680 2590 2640 2720 2600 2650 2730
Q130LD Q150L Q170L Q180L QS200L
Telescopic boom length [dm] 72 80 97 104 80V 80 83 97 104 115 80V 80 83 97 104 115 80V 80 83 97 104 107
Number of extensions 1 1 2 2 2 1 2 2 2 2 2 1 2 2 2 2 2 1 2 2 2 2
Net load moment [kNm] 123 119 116 111 142 142 138 136 131 - 156 156 153 150 145 138 177 177 174 171 166 180
Net slewing torque [kNm] 30 30 30 30 30 30 30 30 30 30 32 32 32 32 32 32 32 32 32 32 32 34
Slewing angle [°] 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 385
Max. reach [m] 7,2 8 9,7 10,4 8 8 8,3 9,7 10,4 11,5 8 8 8,3 9,7 10,4 11,5 8 8 8,3 9,7 10,4 10,7
Operating pressure [bar] 210 210 210 210 240 240 240 240 240 240 260 260 260 260 260 260 290 290 290 290 290 270
Max. pump capacity. 1K [l/min] 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 1x90 -
Max. pump capacity. 2K [l/min] 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80 2x80
Max. pump capacity. 2K-LS [l/min] 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 1x150 -

Dead weight without joint/rotator

Q130LD Q150L Q170L Q180L QS200L
Telescopic boom length [dm] 72 80 97 104 80V 80 83 97 104 115 80V 80 83 97 104 115 80V 80 83 97 104 107
Incl. standing platform (SCMD/SCRCD) 2400 2450 2630 2690 2550 2410 2490 2590 2650 - 2590 2450 2530 2630 2690 - 2600 2460 2540 2640 2700 -
Incl. standard top seat 2400 2450 2630 2690 2550 2410 2490 2590 2650 - 2590 2450 2530 2630 2690 - 2600 2460 2540 2640 2700 2370
Incl. electric cabin (CAE) - - - - - 2750 2830 2930 2990 - - - - - - - - - - - - -
Incl. mechanical cabin (CAM) - - - - - 2760 2840 2940 3000 - - - - - - - - - - - - -
Incl. XL electric cabin (CAEXL) 2810 2860 3040 3100 - - - - - - - - - - - - - - - - - -
Incl. remote control (RCE) 2400 2450 2630 2690 2550 2410 2490 2590 2650 - 2590 2450 2530 2630 2690 - 2600 2460 2540 2640 2700 -
