Forwardercrane

S-SERIES
EPSOLUTION

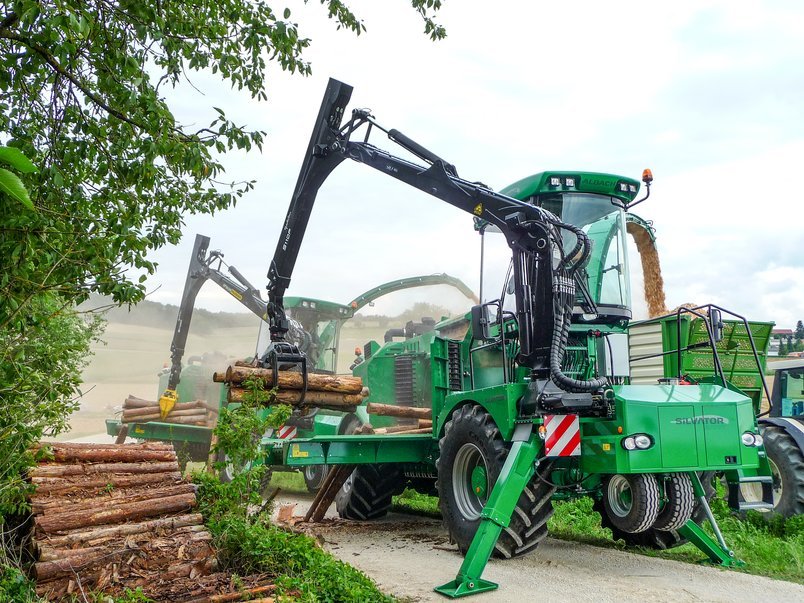

EPSILON cranes mounted on chippers increase the productivity of the chipper, as all hoses are mounted inside and protected. The grab is also protected with the solutions EPSCOPE and EPSLINK. This way the operator can concentrate completely on chipping.

In this application area EPSILON cooperates exclusively with professional OEMs, which integrate the crane control with the control of the chipper. EPSILON stands out in this sector with the largest product and equipment range of the truck and forwarder field.

The S-Series is the heavy-duty class of EPSILON cranes in the chipper model range and covers lifting capacities of 10 to 11 tonne metres.

CONTROL METHODS

Available areas for

External Control

Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.

External Control
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

Forwardercrane

	S100F	S110F
Telescopic boom length [dm]	101	101
Number of extensions	2	2
Net load moment [kNm]	86	100
Net slewing torque [kNm]	33	36
Slewing angle [°]	385	385
Max. reach [m]	10,1	10,1
Operating pressure [bar]	215	240
Max. pump capacity. 1K [l/min]	-	-
Max. pump capacity. 2K [l/min]	-	-
Max. pump capacity. 2K-LS [l/min]	150	150
