S-Series
EPSOLUTION

EPSILON and SOLUTION together make EPSOLUTION

The market leader in forestry and recycling cranes considers it its duty to take requests and feedback from customers and implement them in its designs, thereby creating well-founded solutions that provide customers with products tailor-made for their applications.

The S-Series is the heavy-duty class of EPSILON cranes in this model range. With lifting capacities of 22 to 30 tonne metres, this class is ideally suited to hard long wood handling.

Control methods

Available areas for

Standard top seat (HS)

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.

Top seat | Epsolution
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Standard top seat (HS)

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.

Top seat | Epsolution
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

L-Crane

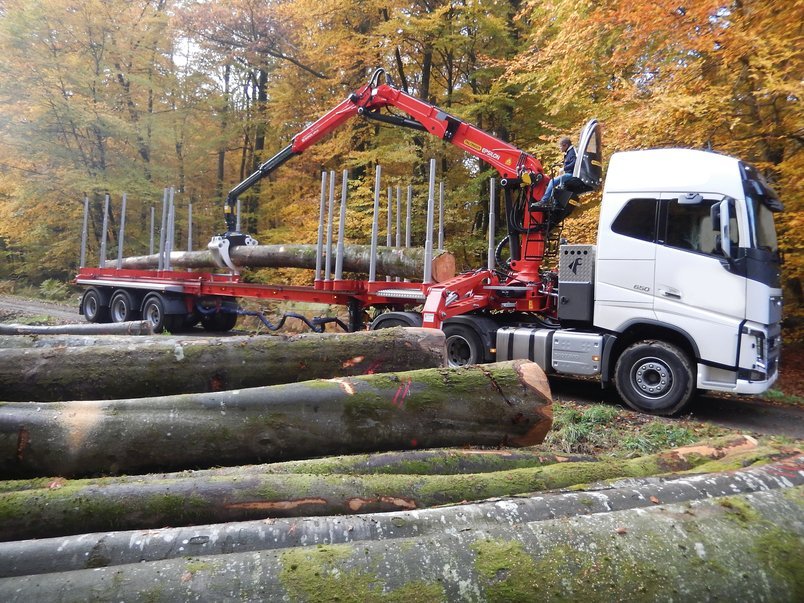

	S210LD					S260L					S270L				S290L			S300L
Telescopic boom length [dm]	82	97	102	128	130	82	87	97	128	130	83	88	98	103	82	87	97	83	88	98	103
Number of extensions	1	2	2	-	1	1	1	2	-	1	1	1	2	2	1	1	2	1	1	2	2
Net load moment [kNm]	182	176	171	155	151	236	232	229	208	204	248	244	242	238	265	261	258	280	276	274	270
Net slewing torque [kNm]	35	35	35	35	35	39	39	39	39	39	39	39	39	39	39	39	39	39	39	39	39
Slewing angle [°]	385	385	385	385	385	385	385	385	385	385	385	385	385	385	385	385	385	385	385	385	385
Max. reach [m]	8,2	9,7	10,2	12,8	13	8,2	8,7	9,7	12,8	13	8,3	8,8	9,8	10,3	8,2	8,7	9,7	8,3	8,8	9,8	10,3
Operating pressure [bar]	225	225	225	225	225	280	280	280	280	280	260	260	260	260	310	310	310	290	290	290	290
Max. pump capacity. 1K [l/min]	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Max. pump capacity. 2K [l/min]	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90	2x90
Max. pump capacity. 2K-LS [l/min]	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Dead weight without joint/rotator

	S210LD					S260L					S270L				S290L			S300L
Telescopic boom length [dm]	82	97	102	128	130	82	87	97	128	130	83	88	98	103	82	87	97	83	88	98	103
Incl. standard top seat	2360	2520	2570	2650	2740	2360	2410	2520	2650	2740	2500	2540	2660	2710	2370	2420	2530	2510	2550	2670	2720

Z-Crane

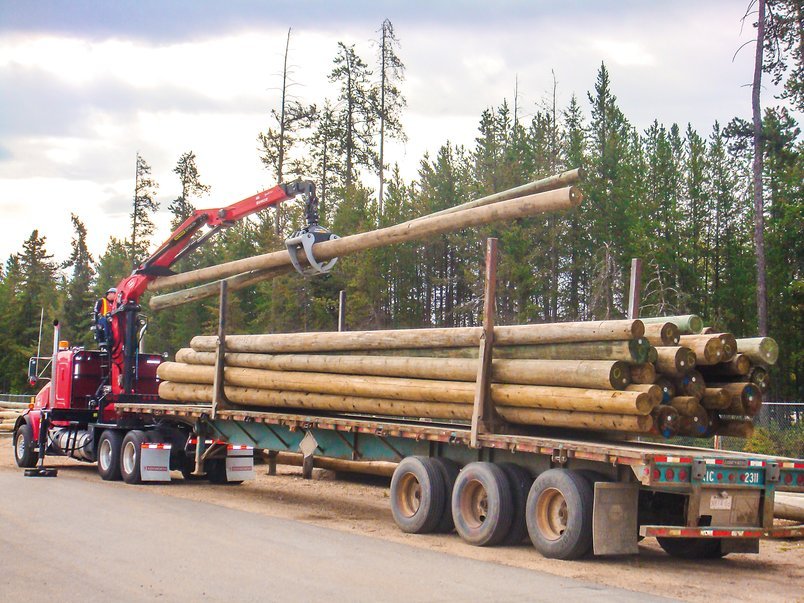

	S210ZD	S260Z		S290Z
Telescopic boom length [dm]	96	79	96	79	96
Number of extensions	2	1	2	1	2
Net load moment [kNm]	-	218	212	246	241
Net slewing torque [kNm]	33	36	36	36	36
Slewing angle [°]	385	385	385	385	385
Max. reach [m]	9,6	7,9	9,6	7,9	9,6
Operating pressure [bar]	-	260	260	290	290
Max. pump capacity. 1K [l/min]	-	-	-	-	-
Max. pump capacity. 2K [l/min]	2x90	2x90	2x90	2x90	2x90
Max. pump capacity. 2K-LS [l/min]	-	-	-	-	-
