Q-SERIES
EPSOLUTION

EPSILON and SOLUTION together make EPSOLUTION

The market leader in forestry and recycling cranes considers it its duty to take requests and feedback from customers and implement them in its designs, thereby creating well-founded solutions that provide customers with products tailor-made for their applications.

The Q-Series is the upper end of the medium-duty class of EPSILON cranes in this model range and covers lifting capacities of 15 to 18 tonne metres.

CONTROL METHODS

Available areas for

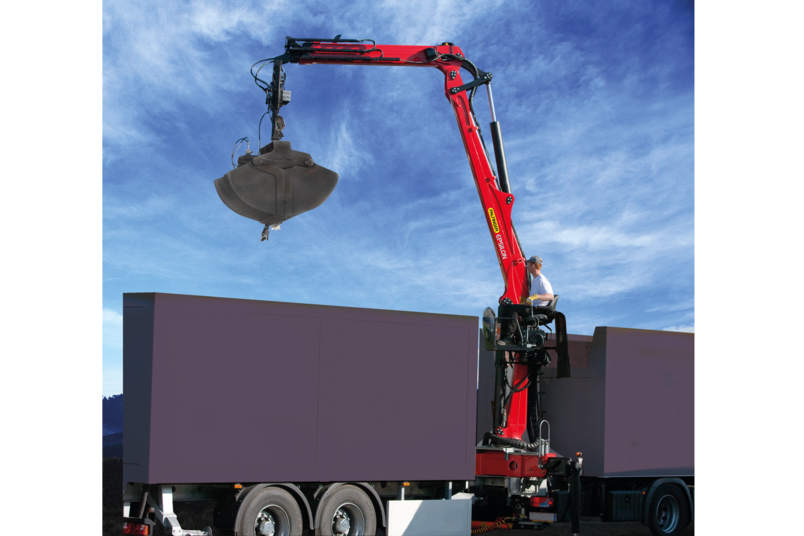

Standard top seat (HS)

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.

Top seat | Epsolution
Standing platform (SCMD/SCRCD)

Perfect visibility over the tipper truck; also available in combination with remote control.

Standing platform | Epsolution

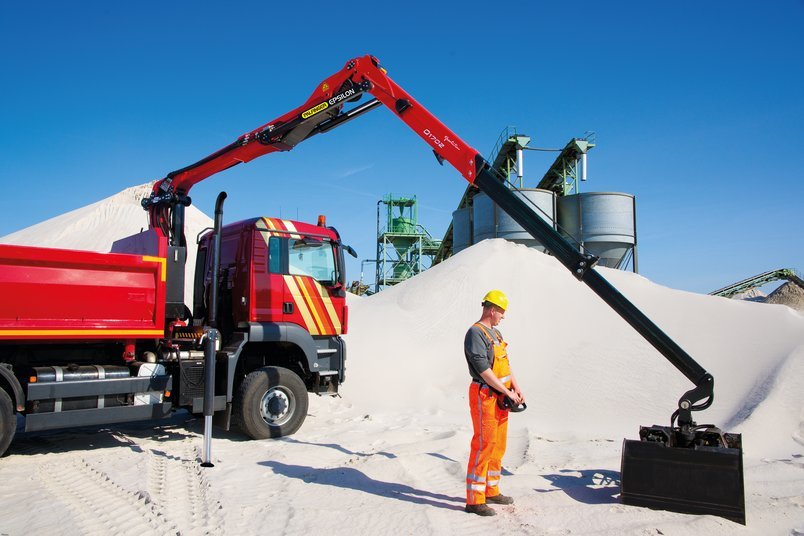

Remote control (RCE)

Simple, high-precision controls with a clear view of the cargo.

Remote control | Epsolution
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Standard top seat (HS)

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.

Top seat | Epsolution
Standing platform (SCMD/SCRCD)

Perfect visibility over the tipper truck; also available in combination with remote control.

Standing platform | Epsolution
Remote control (RCE)

Simple, high-precision controls with a clear view of the cargo.

Remote control | Epsolution
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Standard top seat (HS)

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.

Top seat | Epsolution
Standing platform (SCMD/SCRCD)

Perfect visibility over the tipper truck; also available in combination with remote control.

Standing platform | Epsolution
Remote control (RCE)

Simple, high-precision controls with a clear view of the cargo.

Remote control | Epsolution
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Standard top seat (HS)

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.

Top seat | Epsolution
Standing platform (SCMD/SCRCD)

Perfect visibility over the tipper truck; also available in combination with remote control.

Standing platform | Epsolution
Remote control (RCE)

Simple, high-precision controls with a clear view of the cargo.

Remote control | Epsolution
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

Triple-L

	Q150L		Q170L
Telescopic boom length [dm]	82TR	95TR	82TR	95TR
Number of extensions	2	2	2	2
Net load moment [kNm]	134	131	148	145
Net slewing torque [kNm]	30	30	32	32
Slewing angle [°]	425	425	425	425
Max. reach [m]	8,2	9,5	8,2	9,5
Operating pressure [bar]	240	240	260	260
Max. pump capacity. 1K [l/min]	1x90	1x90	1x90	1x90
Max. pump capacity. 2K [l/min]	2x80	2x80	2x80	2x80
Max. pump capacity. 2K-LS [l/min]	1x150	1x150	1x150	1x150

Dead weight without joint/rotator

	Q150L		Q170L
Telescopic boom length [dm]	82TR	95TR	82TR	95TR
Incl. standing platform (SCMD/SCRCD)	2780	2880	2820	2920
Incl. standard top seat	2780	2880	2820	2920
Incl. remote control (RCE)	2780	2880	2820	2920

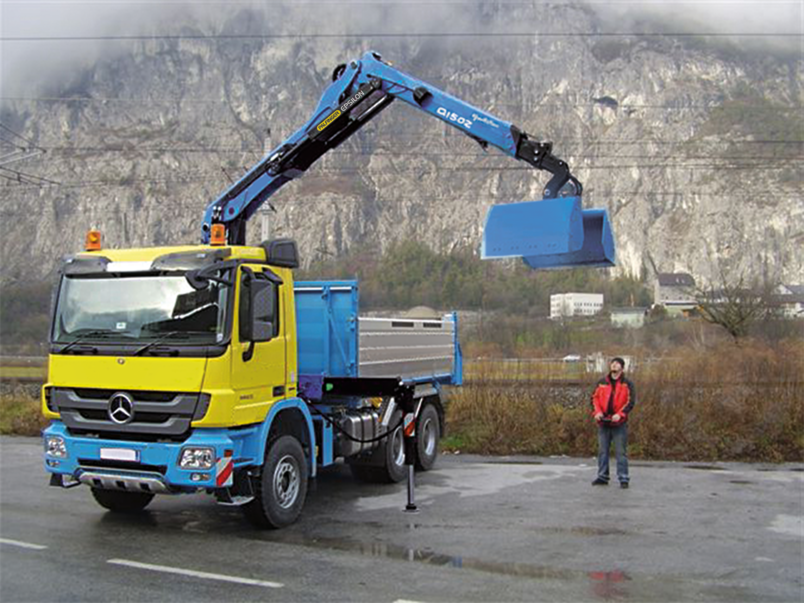

Tipper-Z

	Q150Z	Q170Z
Telescopic boom length [dm]	84TI	84TI
Number of extensions	2	2
Net load moment [kNm]	141	160
Net slewing torque [kNm]	30	32
Slewing angle [°]	425	425
Max. reach [m]	8,4	8,4
Operating pressure [bar]	240	260
Max. pump capacity. 1K [l/min]	1x90	1x90
Max. pump capacity. 2K [l/min]	2x80	2x80
Max. pump capacity. 2K-LS [l/min]	1x150	1x150

Dead weight without joint/rotator

	Q150Z	Q170Z
Telescopic boom length [dm]	84TI	84TI
Incl. standing platform (SCMD/SCRCD)	2560	2600
Incl. standard top seat	2560	2600
Incl. remote control (RCE)	2560	2600

Triple-Z

	Q150Z		Q170Z		Q180Z
Telescopic boom length [dm]	79TR	95TR	79TR	95TR	79TR	95TR
Number of extensions	1	2	1	2	1	2
Net load moment [kNm]	143	138	156	150	175	170
Net slewing torque [kNm]	30	30	32	32	32	32
Slewing angle [°]	425	425	425	425	425	425
Max. reach [m]	7,9	9,5	7,9	9,5	7,9	9,5
Operating pressure [bar]	270	270	290	290	320	320
Max. pump capacity. 1K [l/min]	1x90	1x90	1x90	1x90	1x90	1x90
Max. pump capacity. 2K [l/min]	2x80	2x80	2x80	2x80	2x80	2x80
Max. pump capacity. 2K-LS [l/min]	1x150	1x150	1x150	1x150	1x150	1x150

Dead weight without joint/rotator

	Q150Z		Q170Z		Q180Z
Telescopic boom length [dm]	79TR	95TR	79TR	95TR	79TR	95TR
Incl. standing platform (SCMD/SCRCD)	2820	2920	2860	2960	2870	2970
Incl. standard top seat	2820	2920	2860	2960	2870	2970
Incl. remote control (RCE)	2820	2920	2860	2960	2870	2970

L-Crane


Telescopic boom length [dm]
Number of extensions
Net load moment [kNm]
Net slewing torque [kNm]
Slewing angle [°]
Max. reach [m]
Operating pressure [bar]
Max. pump capacity. 1K [l/min]
Max. pump capacity. 2K [l/min]
Max. pump capacity. 2K-LS [l/min]
