Forwardercrane

S-SERIES
EPSOLUTION

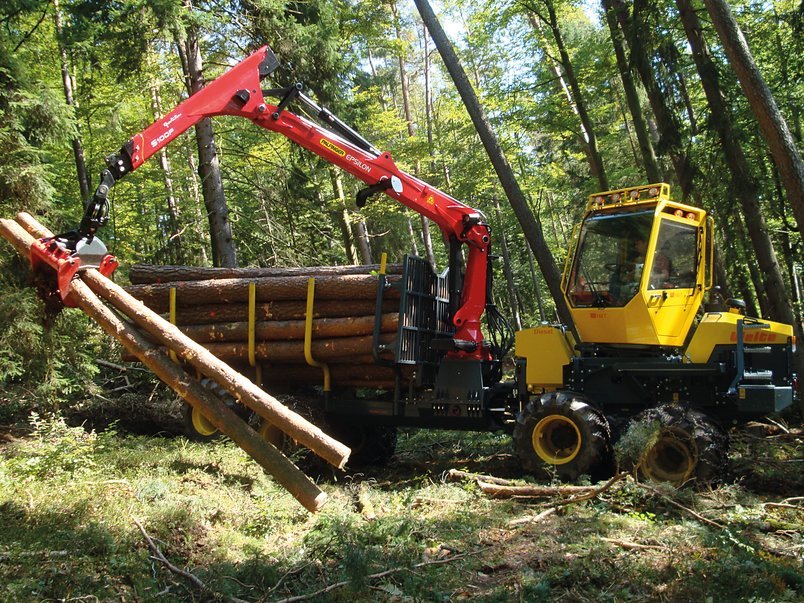

EPSILON forwarder cranes – with or without tilt mechanisms – feature the winning combination of a perfect finish, protected hoses and excellent workmanship.

Long reaches alongside an array of different boom systems make EPSILON a favourite among all OEMs. Another feature of EPSILON is EPSLIGHT. The latest LED technology is controlled via an elbow lever system to ensure that the light is always shining on the working area.

The S-Series is the heavy-duty class of EPSILON cranes in the forwarder model range and covers lifting capacities of 10 to 11 tonne metres.

CONTROL METHODS

Available areas for

External Control

Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.

External Control
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

Forwardercrane

	S100F			S110F
Telescopic boom length [dm]	80	86	101	80	86	101	104
Number of extensions	1	2	2	1	2	2	2
Net load moment [kNm]	91	90	86	104	104	100	92
Net slewing torque [kNm]	33	33	33	36	36	36	36
Slewing angle [°]	385	385	385	385	385	385	385
Max. reach [m]	8	8,6	10,1	8	8,6	10,1	10,4
Operating pressure [bar]	215	215	215	240	240	240	240
Max. pump capacity. 1K [l/min]	1x90	1x90	1x90	1x90	1x90	1x90	1x90
Max. pump capacity. 2K [l/min]	-	-	-	-	-	-	-
Max. pump capacity. 2K-LS [l/min]	-	-	-	-	-	-	-
