Forwardercrane

X-SERIES
EPSOLUTION

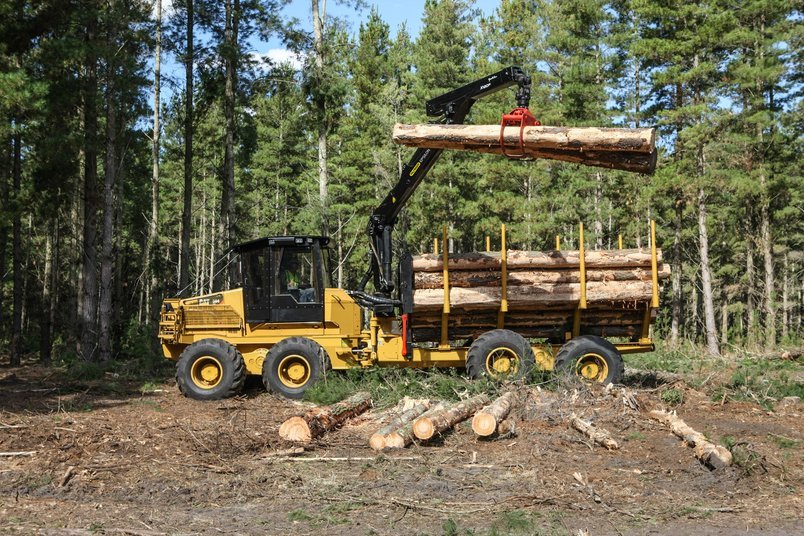

EPSILON forwarder cranes – with or without tilt mechanisms – feature the winning combination of a perfect finish, protected hoses and excellent workmanship.

Long reaches alongside an array of different boom systems make EPSILON a favourite among all OEMs. Another feature of EPSILON is EPSLIGHT. The latest LED technology is controlled via an elbow lever system to ensure that the light is always shining on the working area.

The X-Series is the extra heavy-duty class of EPSILON cranes in the forwarder model range and covers lifting capacities of 12 to 14 tonne metres.

CONTROL METHODS

Available areas for

External Control

Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.

External Control
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

Forwardercrane

	X120F				X140F
Telescopic boom length [dm]	80	86	102	105	80	86	89	102	105
Number of extensions	1	2	2	2	1	2	2	2	2
Net load moment [kNm]	111	110	107	104	123	122	121	119	118
Net slewing torque [kNm]	40	40	40	40	43	43	43	43	43
Slewing angle [°]	380	380	380	380	380	380	380	380	380
Max. reach [m]	8	8,6	10,2	10,5	8	8,6	8,6	10,2	10,5
Operating pressure [bar]	230	230	230	230	250	250	250	250	250
Max. pump capacity. 1K [l/min]	1x110	1x110	1x110	1x110	1x110	1x110	1x110	1x110	1x110
Max. pump capacity. 2K [l/min]	-	-	-	-	--	--	--	--	--
Max. pump capacity. 2K-LS [l/min]	-	-	-	-	-	-	-	-	-
