C-SERIES
EPSOLUTION

EPSILON and SOLUTION together make EPSOLUTION

The market leader in forestry and recycling cranes considers it its duty to take requests and feedback from customers and implement them in its designs, thereby creating well-founded solutions that provide customers with products tailor-made for their applications.

The C-Series is the compact class of EPSILON cranes in this model range and covers lifting capacities of 7 to 8 tonne metres.

EPSILON-C80L | © PALFINGER-EPSILON

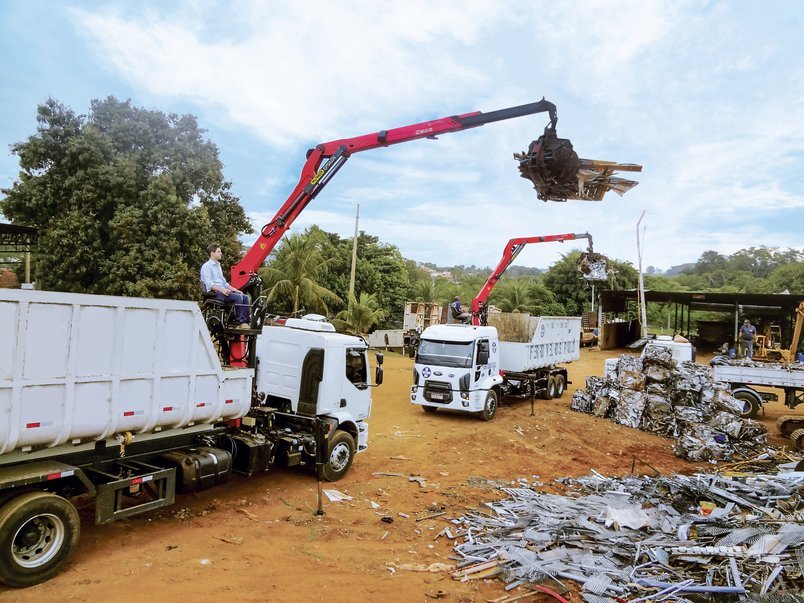

EPSILON-C80Z | © PALFINGER-EPSILON

CONTROL METHODS

Available areas for
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.
  • PALFINGER-EPSILON-HOCHSITZ | © PALFINGER-EPSILON

    Standard top seat (HS)

    The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH) and as a side seat.
    Top seat | Epsolution

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Technical details

C70L C80L
Telescopic boom length [dm] 76V 77 94 76V 77 94
Number of extensions 2 1 2 2 1 2
Net load moment [kNm] 67 67 65 75 76 74
Net slewing torque [kNm] 18 18 18 20 20 20
Slewing angle [°] 425 425 425 425 425 425
Max. reach [m] 7,6 7,7 9,4 7,6 7,7 9,4
Operating pressure [bar] 200 200 200 220 220 220
Max. pump capacity. 1K [l/min] 1x70 1x70 1x70 1x70 1x70 1x70
Max. pump capacity. 2K [l/min] 2x50 2x50 2x50 2x50 2x50 2x50
Max. pump capacity. 2K-LS [l/min] 1x120 1x120 1x120 1x120 1x120 1x120

Dead weight without joint/rotator

C70L C80L
Telescopic boom length [dm] 76V 77 94 76V 77 94
Incl. standard top seat 1800 1690 1760 1820 1710 1780
Incl. remote control (RCE) 1800 1690 1760 1820 1710 1780
C70Z C80Z
Telescopic boom length [dm] 73 89 73 89
Number of extensions 1 2 1 2
Net load moment [kNm] 68 66 76 74
Net slewing torque [kNm] 18 18 20 20
Slewing angle [°] 425 425 425 425
Max. reach [m] 7,3 8,9 7,3 8,9
Operating pressure [bar] 220 220 240 240
Max. pump capacity. 1K [l/min] 1x70 1x70 1x70 1x70
Max. pump capacity. 2K [l/min] 2x60 2x60 2x60 2x60
Max. pump capacity. 2K-LS [l/min] - - - -

Dead weight without joint/rotator

C70Z C80Z
Telescopic boom length [dm] 73 89 73 89
Incl. standard top seat 1740 1820 1760 1840
Incl. remote control (RCE) 1740 1820 1760 1840
