EPSCAB cabin
Maximum comfort, total protection
The command centre to meet the highest standards: all-weather protection and perfect all-around comfort.
This cabin guarantees the best possible safety and offers variable control options – hydraulic servo-controlled or electric.

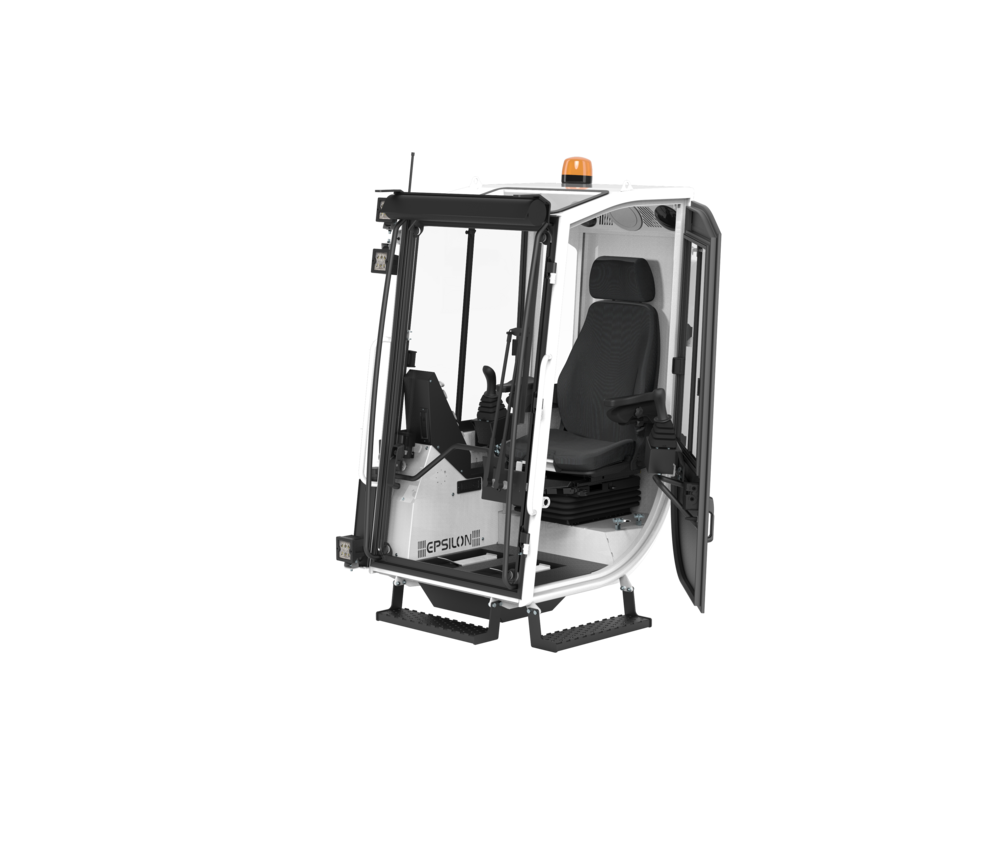

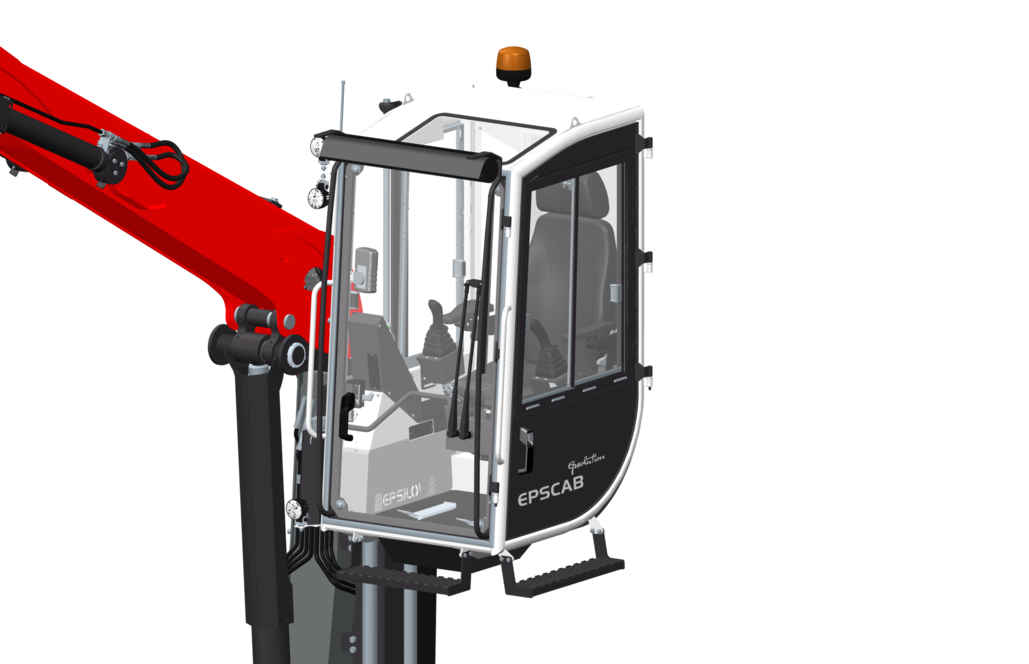

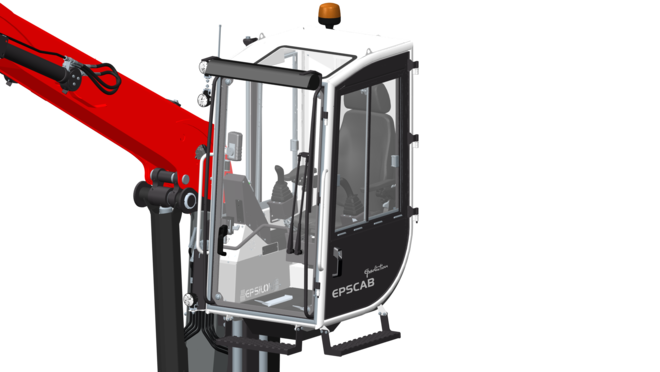

EPSCAB versions
EPSCAB
CAH
Cabin with hydraulic servo control
- All hydraulic functions routed inside crane column via rotary distributor
- External hose package on column with electric cables
- High-quality single- and dual-circuit control valves for fixed-displacement pump operation or single-circuit design for variable-displacement pump operation mounted in seven sections on crane column
- Cabin lift vertically adjustable by 1100 mm; ON/OFF control via switch in cabin
- Stabiliser control ON/OFF via electric switch on cabin operator terminal
- PVG32 stabiliser valve mounted under protective cover on slewing cylinder
- Comfort package consisting of seat with air suspension, RDS radio with CD player, two speakers, interior lighting, windscreen wipers, protective windscreen shutter, adjustable armrests, seat heating, engine start/stop feature, speed +/- (fully cabled to crane base)
- LED lights on cabin as standard
- Cabin painted in RAL 9003, side door in RAL 9005
- Front and side doors as standard
- Optional: weighing systems
- Optional: HYDAC vibration dampers for main boom and slewing
- Optional: yellow warning light on cabin roof
- Optional: water heating system with external water hose on column or WEBASTO diesel heating system (DH)
- Optional: air-conditioning system operated via additional hydraulic function in combination with variable-displacement pump
- Optional: one or two additional hydraulic functions on stabiliser valve; ON/OFF control from cabin

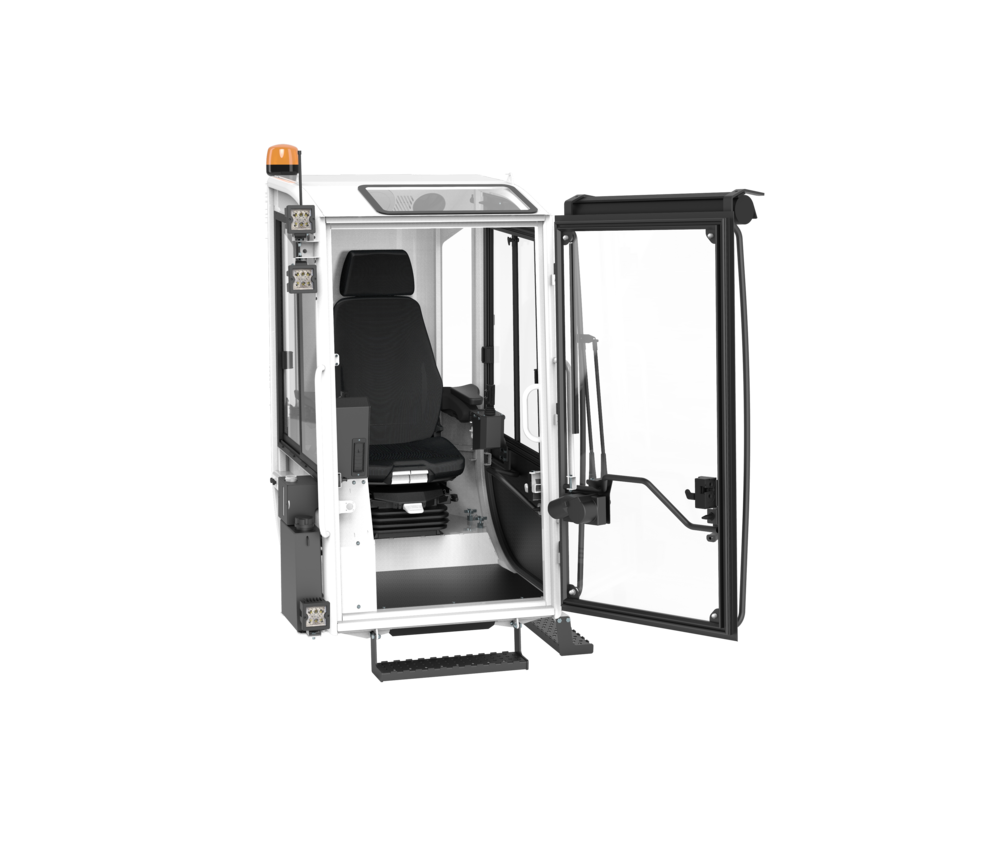

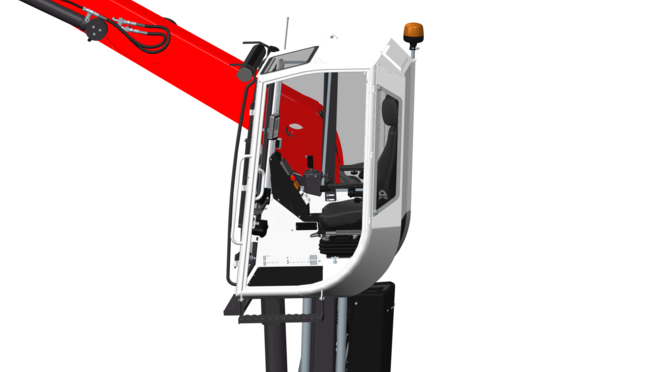

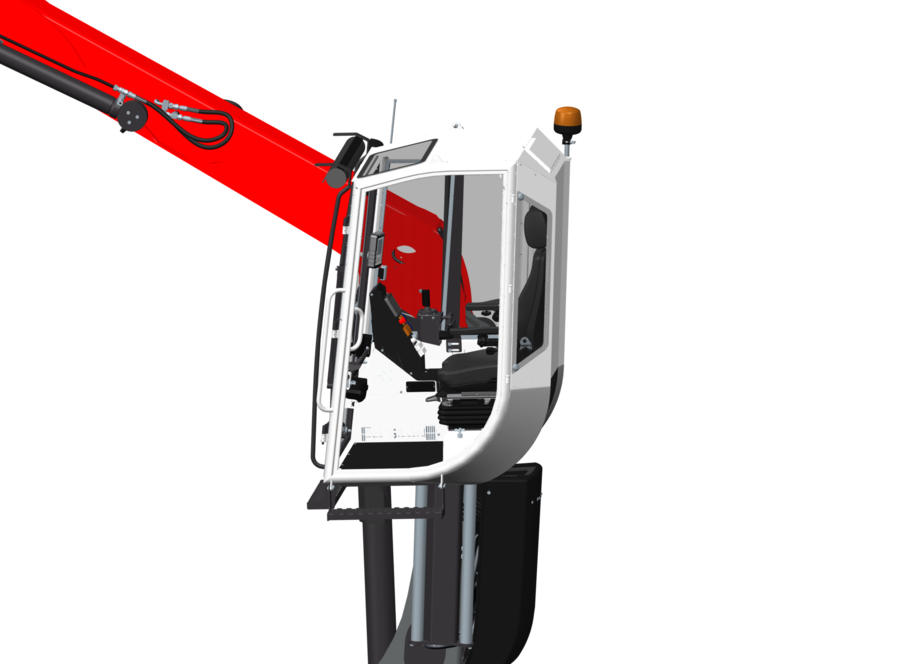

EPSCAB
CAE
Cabin with electric servo control
- All hydraulic functions routed inside crane column via rotary distributor
- External hose package on column with electric cables
- High-quality combination of control valves comprising Parker L 90LS and K220 in single-circuit design for variable-displacement pump operation mounted in seven sections on crane column
- Cabin lift vertically adjustable by 1100 mm; ON/OFF control via joysticks in cabin
- Stabiliser control ON/OFF via joysticks in cabin
- Stabiliser valve mounted under protective cover on slewing cylinder
- Comfort package consisting of seat with air suspension, RDS radio with CD player, two speakers, interior lighting, windscreen wipers, protective windscreen shutter, adjustable armrests, seat heating
- Engine start/stop feature, speed +/- (fully cabled to crane base)
- LED lights on cabin as standard
- Cabin painted in RAL 9003, side door in RAL 9005
- Front and side doors as standard
- HYDAC vibration dampers for main boom and slewing as standard
- Optional: weighing systems
- Optional: yellow warning light on cabin roof
- Optional: water heating system with external water hose on column or WEBASTO diesel heating system
- Optional: air-conditioning system operated via additional hydraulic function in combination with variable-displacement pump
- Optional: one or two additional hydraulic functions on stabiliser valve; ON/OFF control from cabin
- Optional: cabin lift position monitoring system (KLP)
