C-SERIES
EPSOLUTION

EPSILON forwarder cranes – with or without tilt mechanisms – feature the winning combination of a perfect finish, protected hoses and excellent workmanship.

Long reaches alongside an array of different boom systems make EPSILON a favourite among all OEMs. Another feature of EPSILON is EPSLIGHT. The latest LED technology is controlled via an elbow lever system to ensure that the light is always shining on the working area.

The C-Series is the compact class of EPSILON cranes in the forwarder model range and covers lifting capacities of 4,5 to 6 tonne metres.

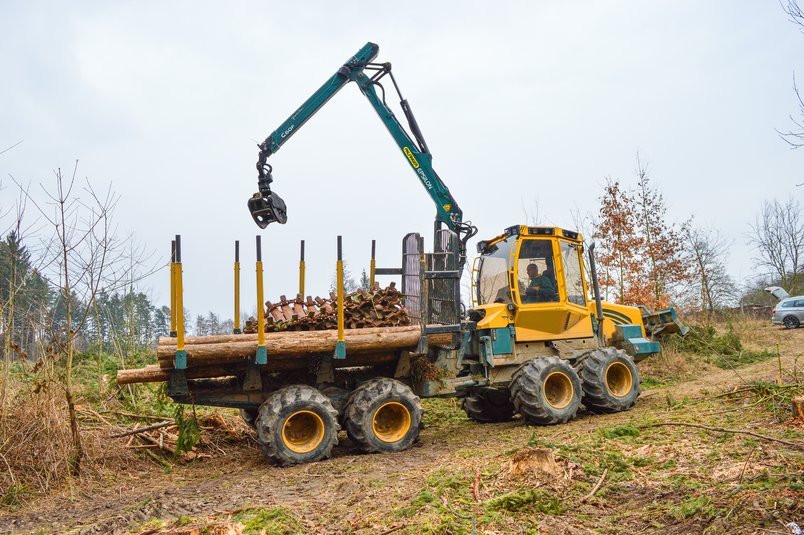

EPSILON-C60F | © PALFINGER-EPSILON

CONTROL METHODS

Available areas for
  • Steuerung-Grundfahrzeug | © PALFINGER-EPSILON

    External Control

    Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.
    External Control

  • Find a dealer in your area

    'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Technical details

C45F C50F C60F
Telescopic boom length [dm] 67 84 69 86 69 86
Number of extensions 1 2 1 2 1 2
Net load moment [kNm] 53 51 56 54 63 61
Net slewing torque [kNm] 14 14 18 18 20 20
Slewing angle [°] 340 340 425 425 425 425
Max. reach [m] 6,7 8,4 6,9 8,6 6,9 8,6
Operating pressure [bar] 170 170 180 180 200 200
Max. pump capacity. 1K [l/min] 1x70 1x70 1x70 1x70 1x70 1x70
Max. pump capacity. 2K [l/min] - - - - - -
Max. pump capacity. 2K-LS [l/min] - - - - - -

Dead weight without joint/rotator

C45F C50F C60F
Telescopic boom length [dm] 67 84 69 86 69 86
