EXHIBITS AT ELMIA 2017

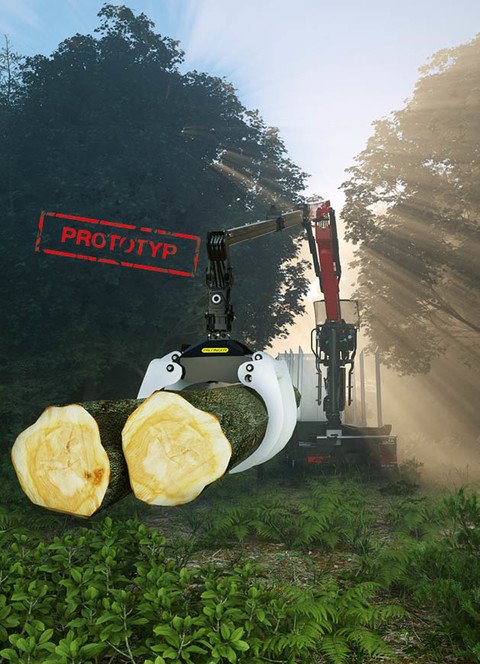

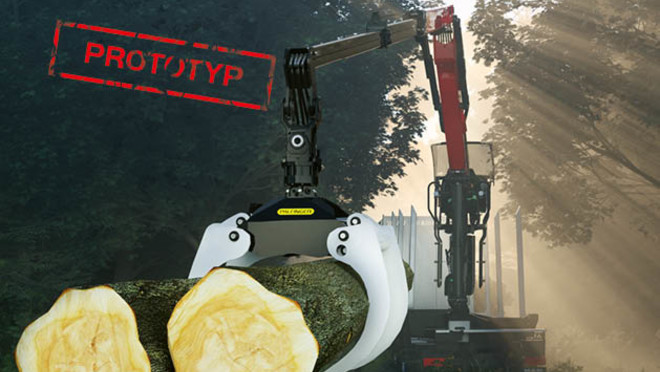

The highlights of the new Q-Series (prototype)
- Lightest crane in its class (Q17Z) – as much as 300 kg lighter than its predecessor series.
- Longest reach in its class – up to 11 m (Q-Series, Z-crane), the entirely newly designed boom system with new geometry offers up to 1400 mm more reach.
- Higher crane speeds – a 17-tonne-metre crane with the same speed as the M-Series (up to 13 tonne metres).
- Excellent serviceability – no more hose package between the main boom and the base, with a rotary distributor for oil flow. The rotary distributor can be removed without the need to disassemble the crane.
- Available with the tried and tested MASTER DRIVE (with hydraulic servo control), Classic Drive and Cabin (hydraulic or electric) control modes.
- LED lighting as standard: two on the top seat, one on the knuckle boom, three 1,000-lumen LEDs as standard, three 2,600-lumen LEDs available as option.
WORLD PREMIERE OF THE
S-SERIES (OFF-ROAD) PROTOTYPE

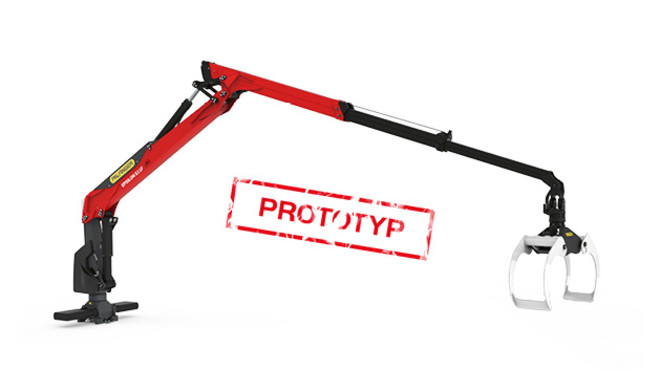

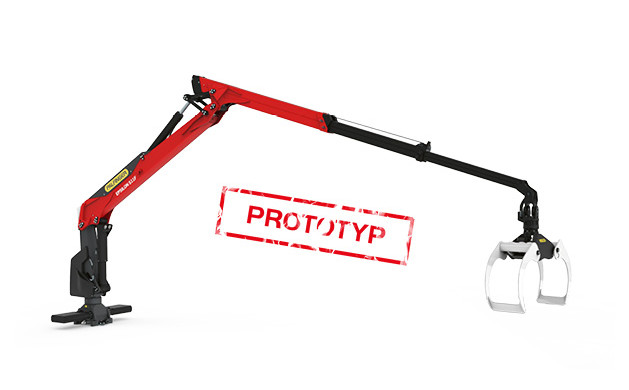

- Presenting the S11F107 as the first S-Series (Off-Road) crane
- Lightest crane in its class – up to 8% lighter than the predecessor series.
- Longest reach in its class – up to 10.7 metres: +600 mm compared with the predecessor series with the same stowage length.
- Greater net lifting capacity with similar gross lifting capacity (compared with predecessor series).
- More compact telescopic boom system offers improved stowage options.
- Faster telescopic boom for working more efficiently.
- Better visibility and installation capabilities thanks to new type of control valve package on the crane column with high-strength cover
- Excellent serviceability – no more hose package between the main boom and the base, with a rotary distributor for oil flow. The rotary distributor can be removed without the need to disassemble the crane.
- EPSLIGHT 2.0 as standard. EPSILON's new intelligent headlight for forwarder cranes – simpler, smarter, better protected! Three 1,000-lumen LEDs as standard – two on the main boom, one on the knuckle boom (three 2,600-lumen LEDs available as option).
M12Z105
The M-Series from NEXT EPSOLUTION melds design, comfort and technology to form one perfect whole. The result is a product that meets even the most specialised of requirements and will surpass your expectations.
You can view a video of some of the highlights here: 'The new M-Series – The Next EPSOLUTION'
Download -'M-Series Next EPSOLUTION' brochure

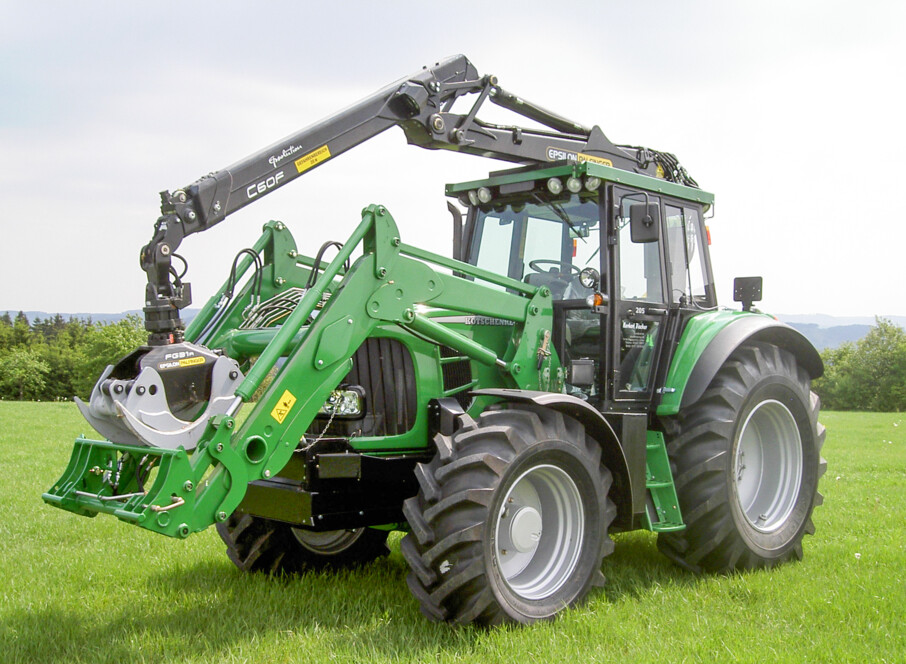

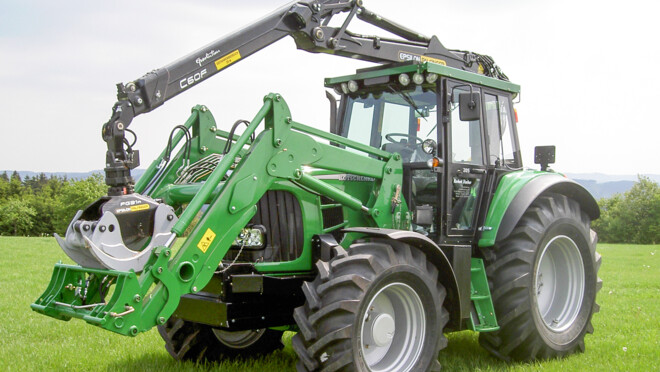

C60F86
EPSILON's tractor crane models stand out thanks to their short stowage lengths, low dead weights and compact installation heights.
The modular system opens up all manner of possibilities for each installation.
You can find further information on theTractor Applicationdetails page.
M12L97
The M-Series represents the medium-duty class of EPSILON cranes in this model range. With lifting capacities of 10 to 13 tonne metres, this class is ideal for short wood applications.
You can find more information on the details page for theM-Series from Next EPSOLUTION.

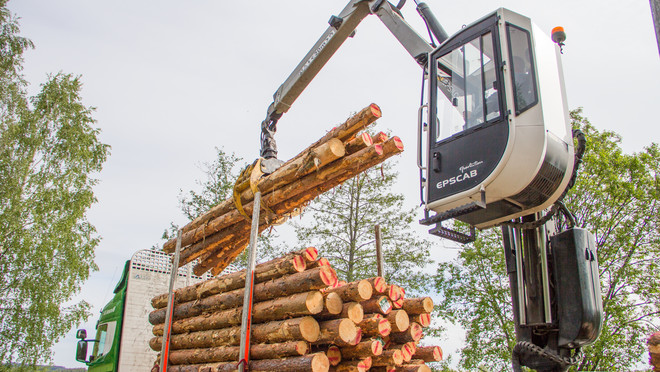

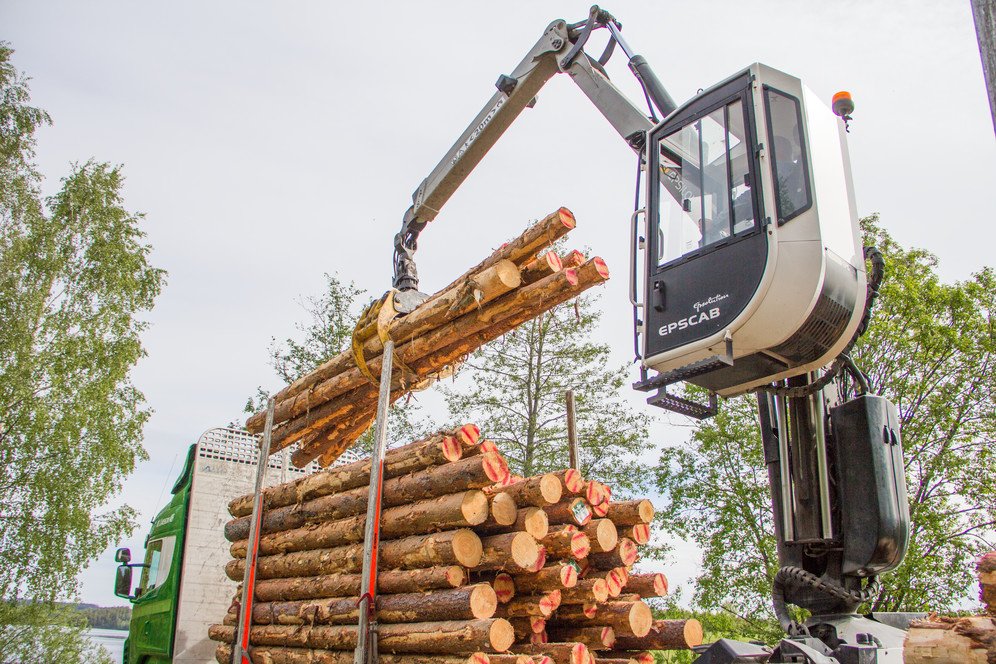

EPSCAB
Maximum comfort, total protection
The command centre to meet the highest standards.
It offers all-weather protection and thus perfect all-around comfort.
This cabin guarantees the best possible safety and offers variable control options – hydraulic servo-controlled or electric.
EPSILON highlights
The highlights of the new Q-Series (prototype)
- Lightest crane in its class (Q17Z) – as much as 300 kg lighter than its predecessor series.
- Longest reach in its class – up to 11 m (Q-Series, Z-crane), the entirely newly designed boom system with new geometry offers up to 1400 mm more reach.
- Higher crane speeds – a 17-tonne-metre crane with the same speed as the M-Series (up to 13 tonne metres).
- Excellent serviceability – no more hose package between the main boom and the base, with a rotary distributor for oil flow. The rotary distributor can be removed without the need to disassemble the crane.
- Available with the tried and tested MASTER DRIVE (with hydraulic servo control), Classic Drive and Cabin (hydraulic or electric) control modes.
- LED lighting as standard: two on the top seat, one on the knuckle boom, three 1,000-lumen LEDs as standard, three 2,600-lumen LEDs available as option.
WORLD PREMIERE OF THE
S-SERIES (OFF-ROAD) PROTOTYPE
- Presenting the S11F107 as the first S-Series (Off-Road) crane
- Lightest crane in its class – up to 8% lighter than the predecessor series.
- Longest reach in its class – up to 10.7 metres: +600 mm compared with the predecessor series with the same stowage length.
- Greater net lifting capacity with similar gross lifting capacity (compared with predecessor series).
- More compact telescopic boom system offers improved stowage options.
- Faster telescopic boom for working more efficiently.
- Better visibility and installation capabilities thanks to new type of control valve package on the crane column with high-strength cover
- Excellent serviceability – no more hose package between the main boom and the base, with a rotary distributor for oil flow. The rotary distributor can be removed without the need to disassemble the crane.
- EPSLIGHT 2.0 as standard. EPSILON's new intelligent headlight for forwarder cranes – simpler, smarter, better protected! Three 1,000-lumen LEDs as standard – two on the main boom, one on the knuckle boom (three 2,600-lumen LEDs available as option).
The lightest crane in its class:
Weight is playing an increasingly important role in the world of professional timber handling. Commercial pressure on wood hauliers is growing, while maximum load capacities are becoming ever stricter.
In keeping with the corporate objective of 'helping customers to achieve even greater success in their work', PALFINGER EPSILON aims to make a significant contribution on behalf of its customers, particularly on the subject of weight.
The use of high-strength steel combined with state-of-the-art, computer-aided simulation methods (3D and finite element analysis) has made it possible to reduce the unladen weight of the Q-Series and S-Series cranes while making key technical improvements at the same time.
Since almost 80% of the steel components are produced in-house, it can always be guaranteed that the material is delivered only where it is actually needed. That applies to every single millimetre of every single component, all of the highest quality.
The fastest crane in its class
The crane speed of the Q-Series has also been improved significantly. Cranes in the higher lifting classes from 14 tonne metres upwards are usually much slower than smaller models.
Not so with the new Q-Series from EPSILON!
Thanks to increased pressure and smaller cylinder diameters, it achieves a similar crane speed to the current M-Series.
This means that customers can access maximum speed even at higher lifting capacities.
Up to eleven metres – the longest reach in its class
The new design of the double telescopic system for Q-Series Z-cranes enables up to 1,400 mm greater reach than the previous model. This means a total reach of an incredible 11 m.
The synchronous principle of the telescopic system ensures exceptionally high and constant extension speeds.
We make your work more efficient – it's a promise
Professionals require product solutions with excellent performance and a long service life. Across the world, the PALFINGER brand stands for high resale values, minimal downtimes and durable components. Economic efficiency and quality are therefore as crucial as innovation and flexibility. We pay attention to every last detail to ensure maximum efficiency.
As a result, not only do we promise our customers outstanding, durable and high-quality machines, but we also uphold this promise.
PALFINGER is extending its warranty for all products from two to three years – irrespective of the segment.

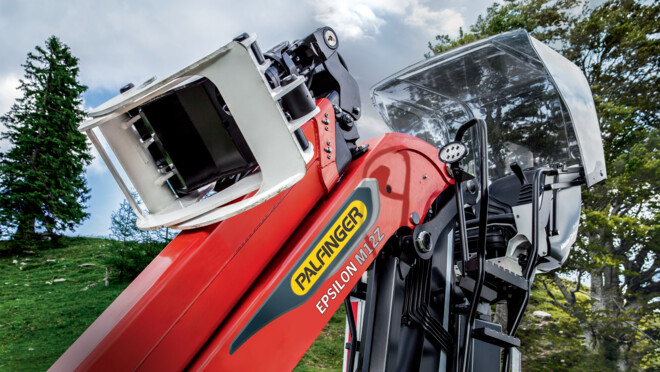

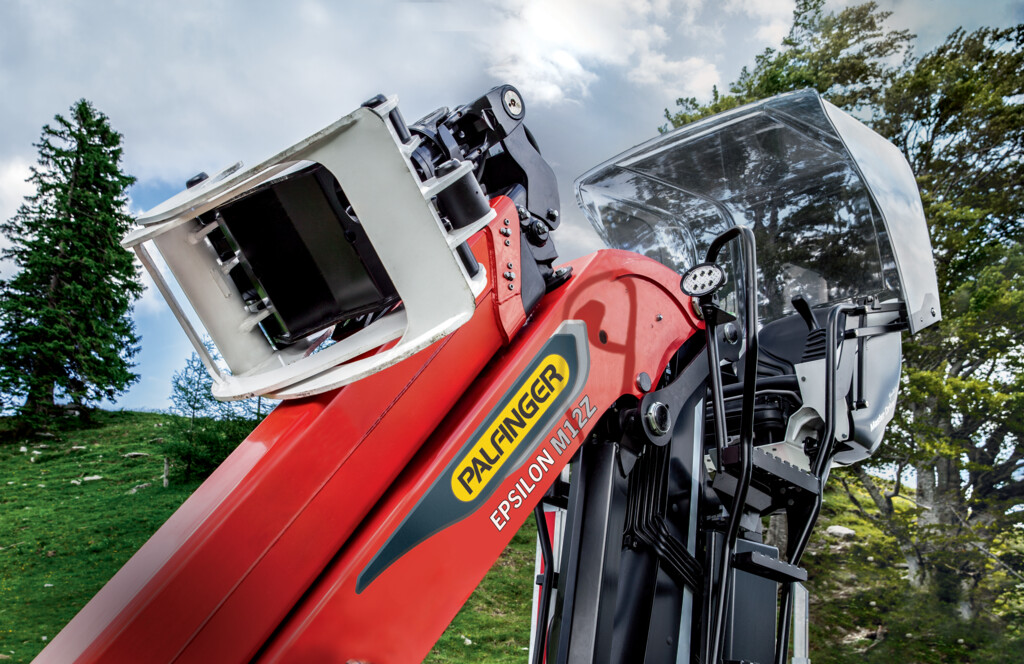

Design, comfort and technology
The Next EPSOLUTION model range from PALFINGER EPSILON is setting new design standards. Enjoy total comfort as soon as you take your place in the all-new top seat – the Master Drive – and operate the multi-function command centre from the highest vantage point.
The technology employed in the model range will impress you right from the start when you notice how much your day-to-day productivity increases thanks to new reach and extremely precise control by hydraulic servo-controlled joysticks.
Master Drive
With the new top seat from PALFINGER EPSILON, the benchmark for comfort and user-friendliness has been taken to a new level.
The Master Drive not only gives the operator full control in every application, but also enables very careful handling thanks to its sophisticated design and top-class technology. The ergonomic design of the mechanically suspended top seat makes the seat extremely comfortable, while the multi-function armrest puts all commands at your fingertips.
The Master Drive with EPSHOOD is available as an option.
Operator protection made from engineered thermoplastic allows for protected handling in all weather conditions.
Internal hose guide
The extended internal hose guide (crane column, main boom, knuckle boom) enables simple handling for the operator.
This innovation dramatically reduces the risk of hose damage and also lowers wear costs. If, despite this, problems still occur, smartly positioned service openings along the entire crane allow for easy access.
